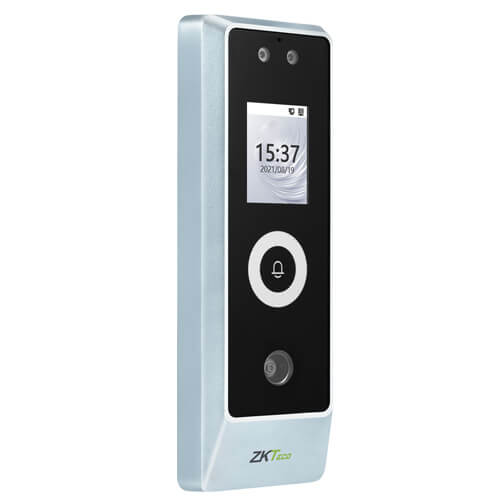

ProMA Series

ProMA is a high-end outdoor multi-biometric access control standalone terminal built with ultra-robust aluminum alloy casted casing.

ProMA series enhance its protection level to reach water and dust proof standard (IP66) and vandal proof standard (IK07). There are three models under ProMA series, which have equipped with difffferent authentication combinations, facial recognition, fingerprint recognition and multi-tech RFID recognition, named as ProMA-QR (Face+QR code+RFID), ProMA-RF (Face+RFID), ProMA (Face+Fingerprint+RFID). Additionally, the latest touchless palm recognition is also available in this terminal as an option feature.

Parameter

Fingerprint Capacity	10,000(Only ProMA)
Face Capacity	30,000(Optional:50,000 only ProMA-QR&ProMA-RF)
Hardware	1.0GHz Quad Core CPU Memory 1G RAM / 8G Flash SilkID Fingerprint Sensor (Available on ProMA only) QR code Sensor (Available on ProMA-QR only) 2.0 Inches color TFT Monitor Hi-Fi Voice & Indicator Tamper Switch Alarm
Optional Functions	Palm recognition PoE IEEE 802.3af / at(external) HID Proxy / iClass / multi-tech Card module Scramble QR code recognition (Supports: PDF417, Data Matrix, MicroPDF417, Aztec, available on ProMA-QR only)
Communication	1* TCP/IP ( TLS1.2, AES-256 end to end secured communication channel) 1* Wiegand input/Output 1*Standard RS485 / OSDP V2.1.7 over RS485 (AES-128, OSDP V2.1.7 Secured Channel)
Standard Function	On-board Web server function Access Levels / Groups / Holidays DST / Bell Schedule /14-digit User ID Duress Mode /Tamper Switch Alarm, Multiple Anti-Passback Record Query
Access Control Interface	1* Lock Relay Output 1* Alarm Output / Auxiliary Input 1* Exit Button / Door Sensor 1* Doorbell Output
Compatibility	Security Relay Box Wiegand / OSDP/ RS485 / RS232 Slave Reader with FP / RFID / QR-code Software: ZKBio CVSecurity / ZKBioTalk(coming soon) Mobile App: ZSmart(coming soon)
Special Functions	IP66 (water & dust proof) IK07 (vandal proof) ≤0.3s High Speed Facial Recognition Fully complied with ZKCSBL (ZKTeco Cyber Security Base Line) Video intercom(coming soon) Onvif Protocol (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A)(coming soon)
Additional Info	ZKFace v3.9& ZKFinger v10.0 ZKPalmVein12.0 Algorithms Operating Temperature: -20 °C to 55 °C (-4°F to 131°F) Operating Humidity: ≤93%RH Storage Temperature: -25 °C to 65 °C (-13°F to 149°F) Storage Humidity: ≤93%RH Dimensions(WHD): 68.7194.728.3mm Heavy duty aluminium alloy casing
RFID Module	ID:EM05 IC:IC08 ID&IC:B133 ID&IC&HID Prox/HID iclass:MTR30(coming soon) BLE/NFC(coming soon)
Power	Operating Voltage: 12V DC Current Draw: < 550mA
