SPECIFICATIONS
|
|
|
Print Method
|
Direct thermal
|
|
Print Width
|
79.5±0.5mm
|
|
Print Speed
|
300 mm/s Max
|
|
Character Set
|
Alphanumeric; International
|
|
Character Size
|
ANK
Font A:1.5×3.0mm (12×24 dots)
Font B:1.1×2.1mm (9×17 dots)
|
|
Print Resolution
|
576 dots/line or 512 dots/line (Adjusted by command)
|
|
Line Spacing
|
3.75mm (Adjusted by command)
|
|
Column Number
|
Font A: 42 columns or 48 columns
|
|
Extension Character Sheet
|
PC437(Standard Europe)/Katakana/PC850 (Multilingual)/PC860(Portuguese)/PC863
(Canadian-French)/PC865(Nordic)/West Europe/Greek/Hebrew/East Europe/Iran/WPC1252/
PC866(Cyrillic#2)/PC852(Latin2)/PC858/IranII/Latvian/Arabic/PT151 (1251)
|
|
1D Barcode Types
|
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
|
|
2D Barcode Types
|
QR CODE/PDF417
|
|
Auto Cutter
|
Partial
|

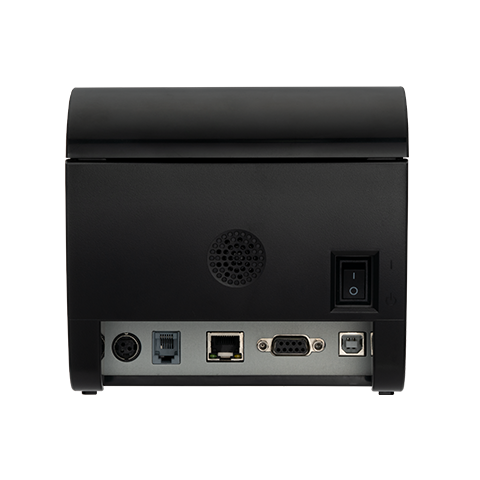

Interface
|
USB+LAN+RS232
|
|
Print Command
|
ESC/POS
|
|
Power Adapter
|
Input: AC 100-240V/50-60 Hz; Output: DC24V/2.5A
|
|
Printer Input
|
DC 24V/2.5A
|
|
Cash Drawer
|
DC 24V/1A
|
|
Cutter Life
|
1.5 million cuts
|
|
Printer Head Life
|
150KM
|
|
Dimensions (D*W*H)
|
185*145*136 (mm)
|
|
Net Weight
|
1.26 Kg
|
Packing Weight
|
2.8 Kg
|
Operating Temperature
|
0℃ to 45℃
|
|
Storage Temperature
|
(-)10℃ to 60℃
|
|
Operating Humidity
|
10% to 80%RH
|
|
Storage Humidity
|
10% to 90%RH
|
|
Certificate
|
CE; FCC; RoHS
|
