iClock580
  • iClock580

iClock580

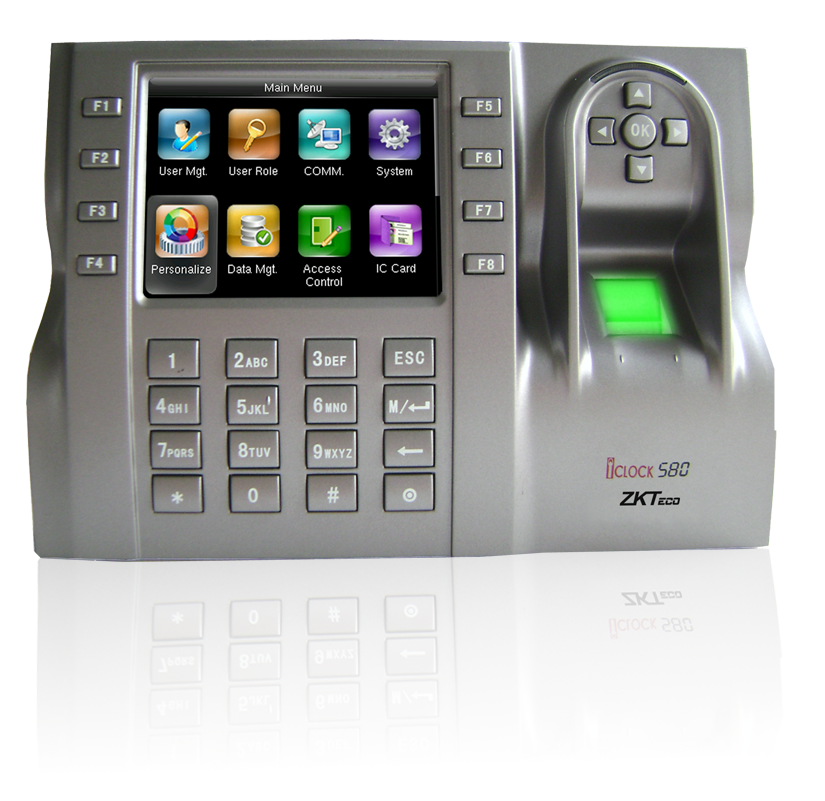

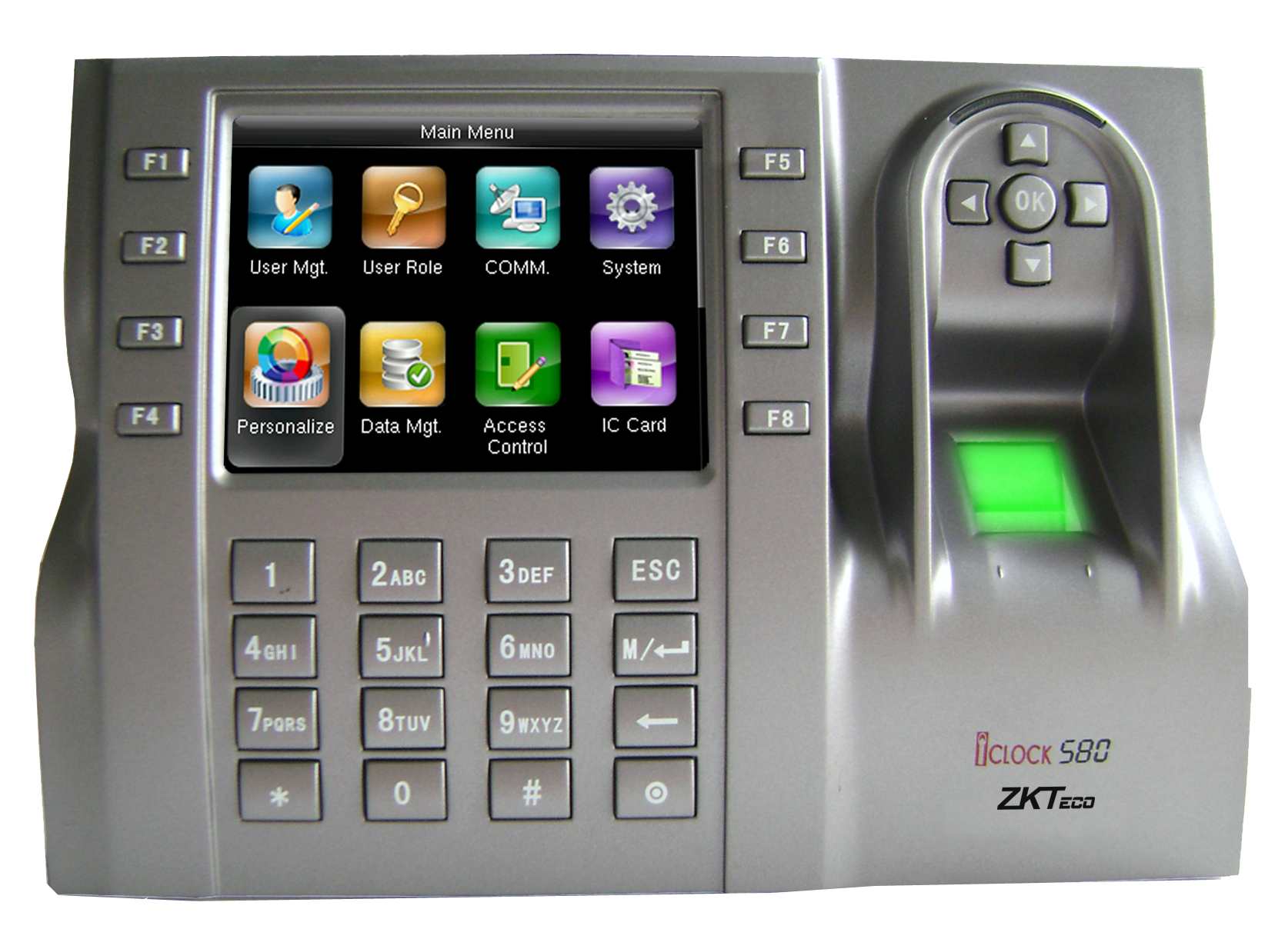

iClock580 is a 3.5inch TFT screen Fingerprint Time Attendance & Access Control Terminal, adopting the new user-friendly firmware, it has a very user-friendly interface and faster identification speed. iClock580 is compatible with various types of USB flash disks, ADMS and former SDK. Moreover, RS232/485, TCP/IP, and USB-host/client ensure a smooth date transmission between device and PC. It also has GPRS, WIFI connectivity and access control connectivity with Wiegand out and in, electric lock, door sensor, exit button, alarm and door bell.

Features

iClock580 TCP/IP communication for various networking environment
iClock580 USB use for data transmission
iClock580 Standard access control features

Parameter

Fingerprint Capacity 8,000
ID Card Capacity  10,000optional
User 10,000
Record Capacity 200,000
Display 3.5-inch TFT Screen
Communication RS232/485, TCP/IPUSB(Host and client)
Standard Functions  Work Code,SMS,Photo ID,DST,Self-Service Query,Automatic Status Switch,Scheduled-bell,T9 input ,Anti-passback
Access control interface 3rd  Party electric lock,door sensor,exit button, alarm,door bell
Optional Functions ID/Mifare/HID,Webserver,ADMS,Multiple Verify Mode,External Printer,Internal WIFI/GPRS
Wiegand Sigal Input&output
software ZKTime.net,ZKTime 5.0
Power Supply DC 12V 1.5A
Verification speed ≤0.5sec.
Operating Temp 0 °C - 45 °C
Operating Humidity 20%-80%
Dimension 189.0 x 136.4x 47.5mm
Net Weight 1.35kg

Download

iClock580 Leaflet

0.9 MB

2019-04-07

iClock580 Leaflet
